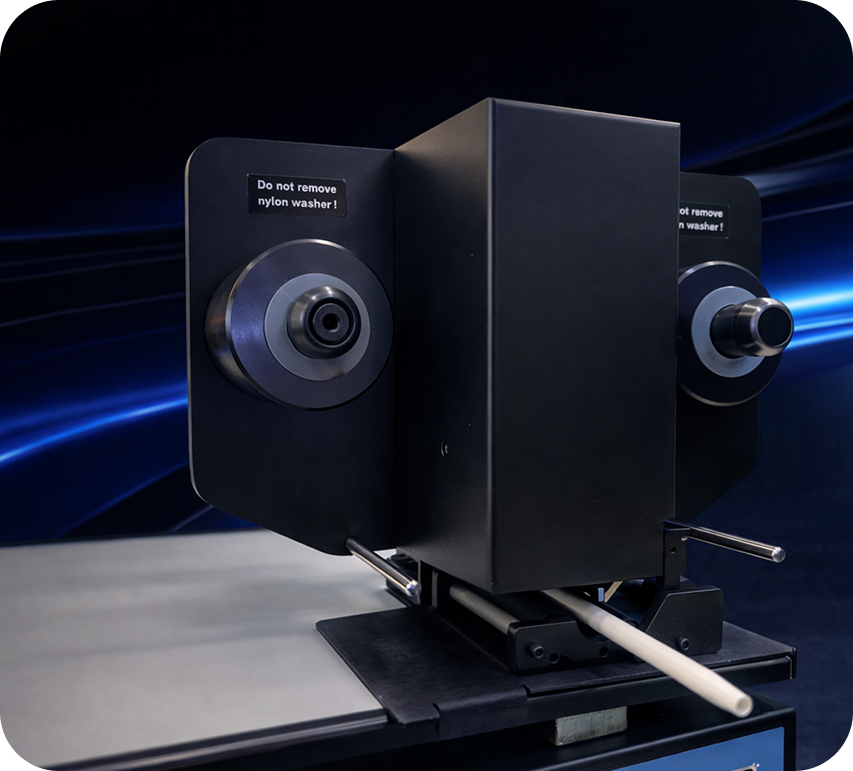

Cyclone Cylinder Pen Module $1,499

The optional Cyclone Cylinder Pen Module expands the Foil Xpress beyond flat applications, enabling high quality foil printing on cylindrical items such as pens, pencils, markers, glow sticks and more. With this add-on, the Foil Xpress Original and Foil Xpress with AP become two printers in one – maximizing versatility and revenue opportunities.
Add To Cart
Buy Now

By checking this box, I agree to the Terms & Conditions.

Important Compatibility Notice
The Cyclone Cylinder Pen Module is designed for printing on cylindrical objects within specified size and material parameters. Print quality and adhesion may vary depending on surface material, coating, diameter consistency, and object finish.
Not all pens or cylindrical products are compatible. We strongly recommend testing samples or confirming compatibility with our team prior to production use.

Cylindrical Foil Printing Made Easy

With the Cyclone Cylinder Pen Module, print names, logos, and messages on pens and round items with sharp, professional foil results.

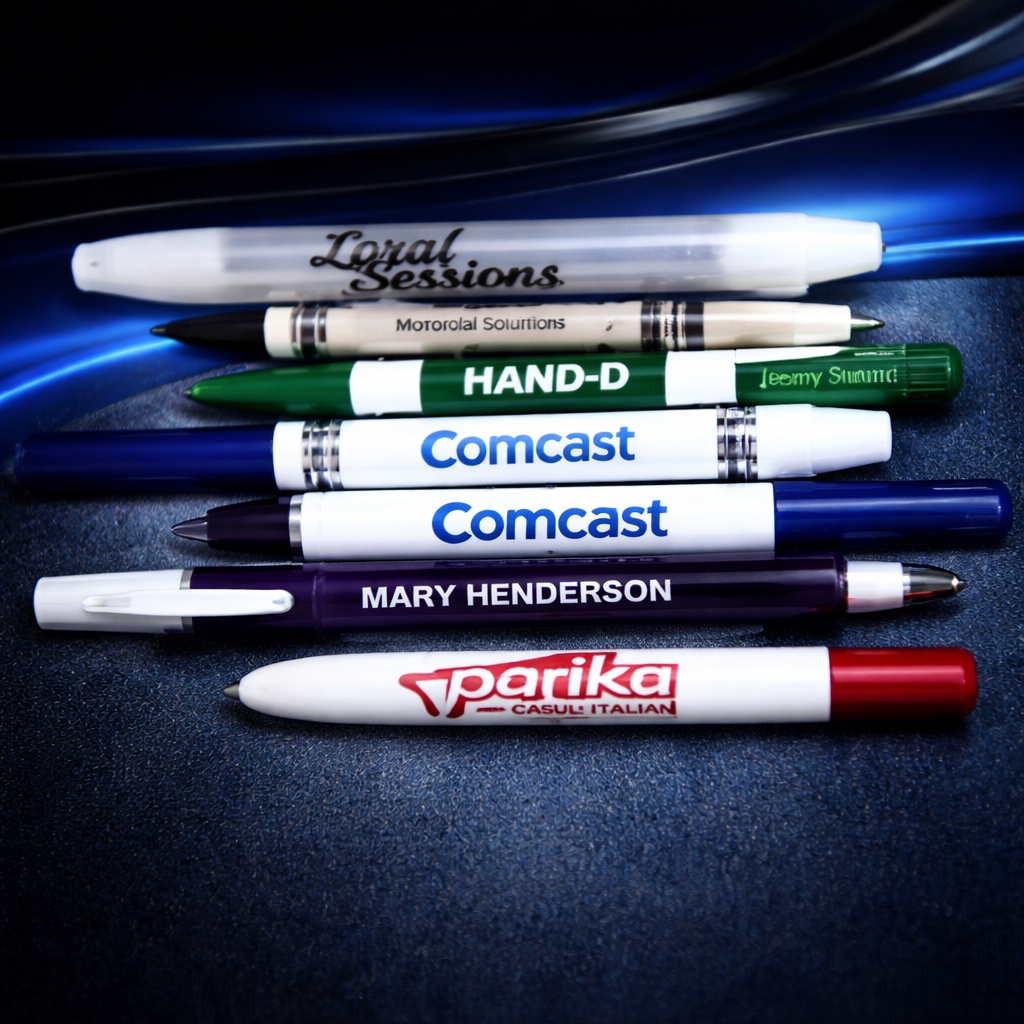

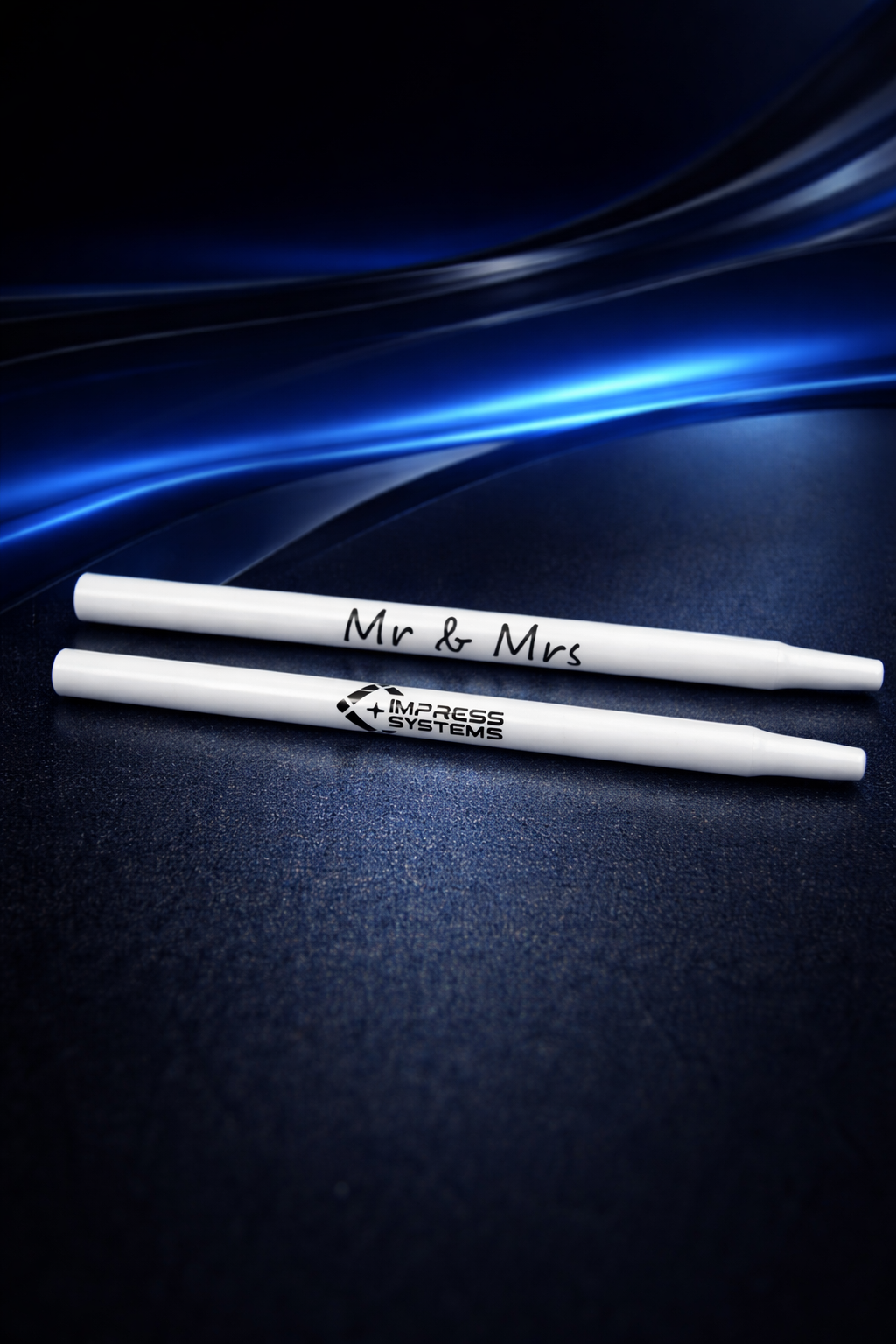

Custom Foil Printing on Pens

Transform everyday pens into memorable, branded pieces with precision foil printing. Add names, logos, or messages in sharp metallic detail that won’t fade or peel. Ideal for corporate branding, events, promotions, and personalized gifts.

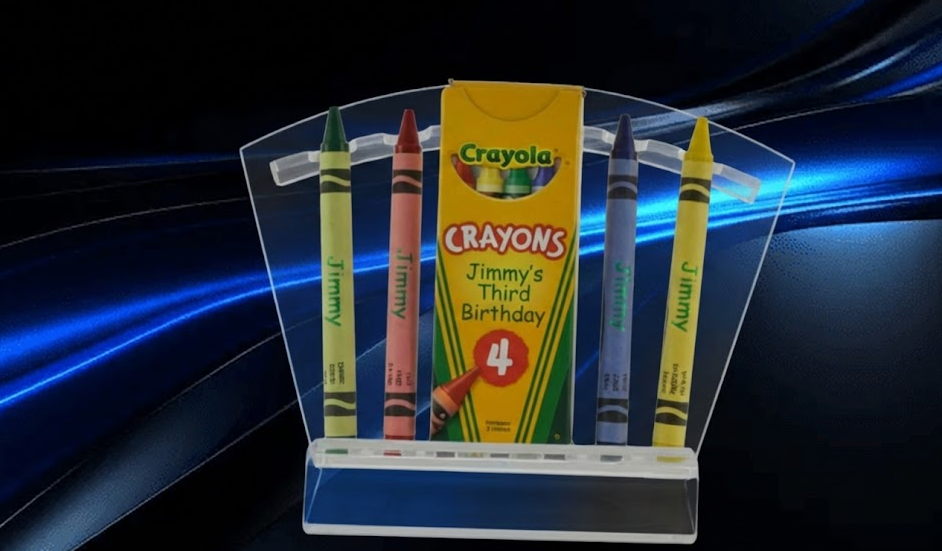

Personalized Crayons with Foil Detail

Bring creativity and personalization together with custom foil printed crayons. Add names, dates, or messages to create fun and memorable items for birthdays, school events, and special celebrations. Foil printing delivers crisp, long lasting personalization that stands out on every piece.
Print Width
2.24 in. (57 mm)
Print Length
8 in. (203 mm)
Print Area
8 in. (203 mm) x 12 in. (305 mm)
Clearance
1 in. (25 mm)
Print Substrates
Flat, smooth, semi-smooth & coated surfaces – including papers, plastics, smooth leather & bonded leather
Flat Printing Applications
Book covers, journals, dated items (calendars, diaries); photo items (albums, press books, photographs, mats); document binding (hard & soft cover); book & report covers; spines of books; stationery items (invitations, announcements, thank cards); advertising specialty items; wedding items.
Cylindrical Printing Applications
Pens, pencils, markers, crayons, syringes, glow stick, vials & tubes
Print Speed
Up to 1 in./sec. (2.5 cm/sec.)
Print Resolution
300 x 600 dpi
Operating System
Windows XP, 7 (32 & 64 BIT), 8 & 10
Printer Driver
ImPress Systems Custom Driver
Software Compatibility
Most Windows Applications
I/O Interface
USB
Power Requirements
100 – 240 VAC; 50/60 Hz
Dimensions

20″ (510 mm) W x 13″ (330 mm) H x 22″ (560 mm) D
Weight

45 lbs. (20 kg)
